Magnetic storage racks revolutionize home organization by using powerful NdFeB magnets for tool-free installation on metal surfaces like refrigerators, tool cabinets, or steel shelves. As a leading Chinese OEM manufacturer in the home storage industry, Zhongan Home Co., Ltd. specializes in producing high-quality magnetic storage racks for international brands, wholesalers, and producers. This comprehensive guide details the magnetic storage rack manufacturing process, from material selection to final assembly, helping you understand quality standards and partner effectively for custom OEM projects.

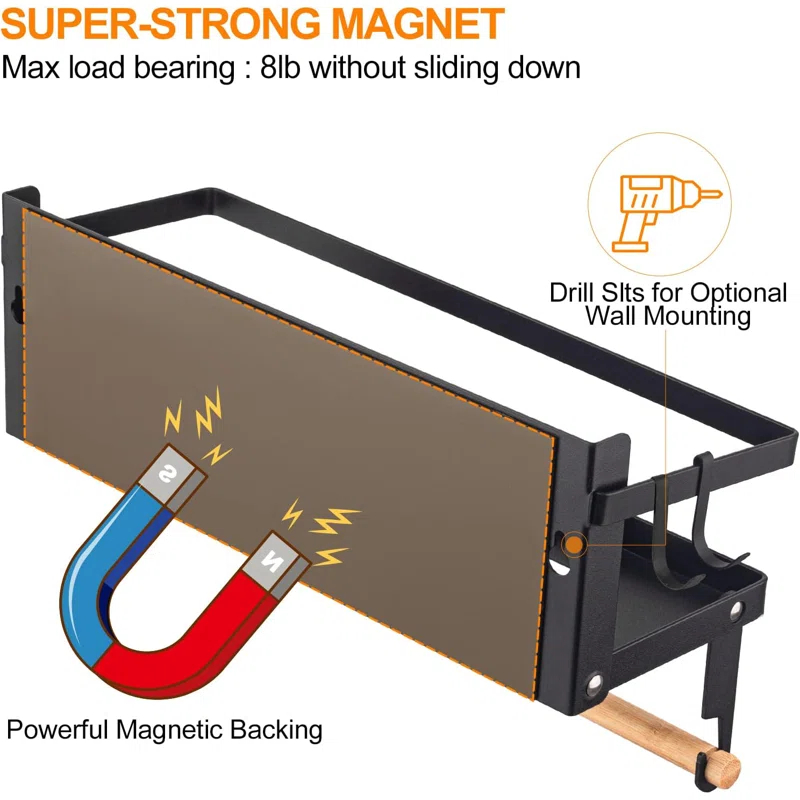

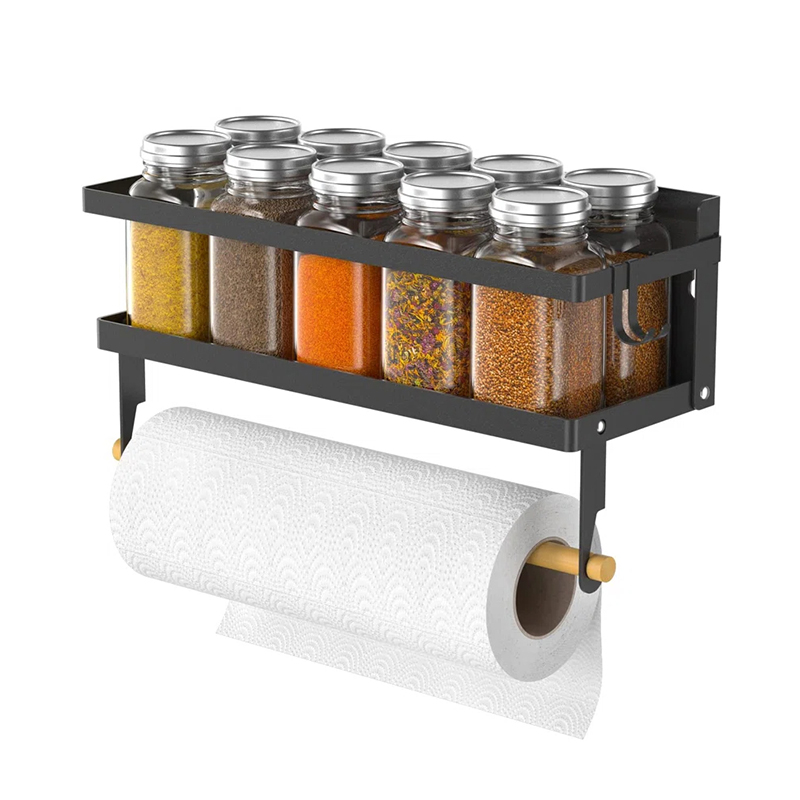

Magnetic storage racks (also called 磁吸置物架) are innovative shelving systems that attach securely to ferrous metal surfaces without drilling, screws, or adhesives. They feature embedded neodymium magnets (NdFeB) combined with durable metal or plastic frames to hold kitchen utensils, tools, spices, bathroom essentials, or office supplies.
Key advantages include:
- Instant installation: One-step magnetic attachment—no tools needed.
- Removable and repositionable: Easy to move without surface damage.
- High load capacity: Up to 10-50 kg per rack depending on magnet strength and design.
- Space-saving: Perfect for kitchens, garages, bathrooms, and workshops.
- Modern aesthetics: Sleek designs in stainless steel, powder-coated steel, or reinforced plastic.
For OEM buyers, these racks represent a high-margin product category with growing demand in Europe, North America, and Australia, where consumers seek smart home organization solutions. [patents.google](https://patents.google.com/patent/CN212500060U/zh)
Professional magnetic storage rack production follows a structured 9-step process to ensure durability, safety, and consistent performance. Each stage incorporates strict quality controls tailored for export markets.
1. Material procurement and preparation
2. NdFeB magnet production/integration
3. Frame fabrication (metal/plastic)
4. Magnet embedding and assembly
5. Surface treatment and coating
6. Load testing and safety validation
7. Final assembly and packaging
8. Quality inspection and certification
9. Custom branding and shipping preparation
This flowchart-based approach maximizes efficiency and minimizes defects, achieving 99.5% first-pass yield in top factories.
Suggested visual: Insert a flowchart diagram here showing the 9 steps with icons for each stage.
Quality begins with precision material sourcing. For export-grade magnetic storage racks, manufacturers select:
- NdFeB magnets: N35-N52 grades with NiCuNi or epoxy coating for corrosion resistance.
- Frame materials: Cold-rolled steel (0.8-2.0mm thickness), 304/316 stainless steel, or high-strength ABS/PC plastic.
- Anti-slip components: Silicone pads, rubber grips, or TPE inserts.
- Fasteners: Stainless steel screws, rivets, or structural adhesives.
Critical specifications:
- Magnets: Minimum 1200-3000 Gauss surface field, pull force 5-20kg per magnet.
- Steel: Yield strength ≥250 MPa, corrosion resistance per ASTM B117 salt spray test.
- All materials RoHS/REACH compliant for EU markets.
Pro tip for OEM buyers: Request material test reports (MTRs) and third-party lab certifications during supplier qualification.
High-performance magnetic storage racks rely on custom NdFeB magnets produced in-house or from certified suppliers. The magnet manufacturing subprocess includes:
1. Alloy melting: Vacuum induction furnace at 1450-1550°C.
2. Strip casting: Rapid cooling creates uniform microstructure.
3. Jet milling: Powder size controlled to 3-5μm for optimal density.
4. Pressing: 10-15T pressure with magnetic field alignment.
5. Sintering: 1080-1120°C vacuum furnace for 2-4 hours.
6. Coating: NiCuNi (15-25μm) or epoxy for humid environments.
2026 industry benchmark: Top manufacturers achieve (BH)max ≥ 48 MGOe with Hcj >12kOe for kitchen/garage applications. [patents.google](https://patents.google.com/patent/CN212500060U/zh)
Suggested visual: Cross-section diagram of magnet embedding in rack frame.
The rack frame provides structural integrity and aesthetic appeal. Manufacturing steps:
- Laser cutting: Precision ±0.1mm tolerance for complex shapes.
- CNC bending: 0.5-6mm radius bends without cracking.
- Robotic welding: MIG/TIG for seamless joints (AWS D1.1 compliant).
- Punching/stamping: Creates magnet pockets and mounting features.
Thickness guidelines:
| Rack Type | Steel Thickness | Max Load Capacity |
|---|---|---|
| Kitchen Spice Rack | 0.8-1.2mm | 5-8kg |
| Tool Storage Rack | 1.5-2.0mm | 15-25kg |
| Heavy Duty Garage | 2.0-3.0mm | 30-50kg |
Quality checkpoint: 100% weld inspection via dye penetrant testing.
Secure magnet integration is the most critical assembly step:
1. Pocket machining: Mill or stamp precise magnet cavities (±0.05mm tolerance).
2. Adhesive application: High-strength epoxy (3M DP460 or equivalent).
3. Magnet insertion: Automated press-fit or robotic placement.
4. Curing: 24-48 hours at controlled temperature/humidity.
5. Secondary retention: Epoxy potting or mechanical crimping for vibration resistance.
Design best practices:
- Multiple magnets (4-12 per rack) distribute load evenly.
- Halbach array configurations increase pull force by 30-50%.
- Silicone gaskets prevent water ingress around magnets.
Safety factor: Minimum 3:1 (tested load vs. rated capacity).
Suggested visual: Exploded 3D view showing magnet, frame, and assembly sequence.
Corrosion resistance determines product lifespan, especially for kitchen/bathroom use:
- Powder coating: 80-120μm thickness, 1000h salt spray resistance.
- Stainless steel: #304/#316 electropolishing for premium finish.
- Plastic injection: UV-stabilized ABS/PC, flame retardant UL94-V0.
Coating comparison:
| Finish Type | Durability | Cost | Best Applications |
|---|---|---|---|
| Powder Coat | Excellent | Low | Garage, utility |
| Stainless Polish | Superior | High | Kitchen premium |
| Epoxy Paint | Good | Very Low | Budget indoor |
Suggested visual: Before/after coating comparison photos.
Every batch undergoes multi-point testing:
1. Static load test: 150% rated capacity for 24 hours.
2. Dynamic load test: Cyclic loading 10,000 cycles.
3. Pull-off force: Individual magnet verification.
4. Drop test: 1m concrete drop, 6 sides.
5. Environmental: -20°C to 80°C, 95% RH, 500h.
2026 compliance standards: EN 71-1 (safety), ASTM F963 (toy safety if applicable), SGS verified.
Value-added features enhance market appeal:
- Adjustable dividers: Tool-free repositioning slots.
- Anti-slip liners: Silicone or rubber mats (μ ≥0.6).
- Cable organizers: Integrated clips for chargers/tools.
- Level indicators: Bubble levels for perfect installation.
Assembly stations: 12-18 operators per line, takt time 45-90 seconds/unit.
Zero-defect export readiness:
- AQL 0.65 critical defects, 1.5 major defects.
- Magnetic field scanning: Gauss meter verification.
- Dimension CMM: ±0.02mm precision measurement.
- Packaging drop test: ISTA 6-Amazon.com standards.
Export documentation:
- Material safety data sheets (MSDS)
- RoHS/REACH declarations
- Load test reports
- Third-party inspection reports
OEM-ready packaging:
- Retail-ready: Hang tags, shrink wrap, cardboard inserts.
- Bulk export: Corner protectors, export pallets (1.2x1.0m).
- Magnetic shielding: Mu-metal sheets for air transport compliance.
- Custom branding: Full-color printing, QR codes for instructions.
MOQ flexibility: 500-1000 units per SKU for new programs.
European kitchen brand case (2025): Partnered with Zhongan Home for magnetic spice racks.
Challenges: Weak competitor magnets failed after 6 months; needed premium positioning.
Solutions implemented:
- N42 epoxy-coated NdFeB magnets (8 per rack).
- 1.8mm powder-coated steel frame.
- Custom color matching (RAL 9003 white).
- Pull force: 18kg total capacity.
Results:
- 95% customer satisfaction (Amazon reviews).
- 300% YoY sales growth.
- Reorder frequency: Monthly 10K units.
Key takeaway: Superior magnet quality + aesthetic design = premium pricing power.
Suggested visual: Product photos + sales growth chart.
Growing demand drivers:
- Minimalist home trends: +25% CAGR in organization products.
- Rental-friendly solutions: 68% EU millennials prefer non-permanent fixtures.
- E-commerce boom: Amazon FBA optimized packaging essential.
Technical innovations:
- Wireless charging integration: Qi-compatible magnet rings.
- Smart magnets: Force sensors for load alerts via app.
- Sustainable materials: 50% recycled steel content.
Pro forecast: Magnetic storage racks to capture 15% of $8.2B global organization market by 2028.
Streamlined 7-step cooperation process:
1. RFQ submission: Upload drawings/Skype/WeChat consultation.
2. Free DFM review: 24h engineering feedback.
3. Prototype approval: 7-10 days, 3-5 samples free.
4. Pre-production verification: Full specs locked.
5. Production + QC: Live video inspection.
6. Delivery: 25-35 days sea/air, DDP terms available.
7. After-sales: 12-month warranty, free replacement policy.
Ready to launch your magnetic storage rack line? Contact Zhongan Home today for free samples, custom design consultation, and competitive OEM pricing.
Load capacity ranges from 5kg (kitchen spice racks) to 50kg (heavy-duty garage racks), depending on magnet grade, frame thickness, and surface quality. Always test on your target installation surface—thicker steel yields higher holding force.
Yes, when properly manufactured. Use food-safe powder coating (FDA compliant), epoxy-coated magnets for humidity resistance, and include anti-slip liners. All Zhongan products pass LFGB and Proposition 65 testing.
No, high-quality NiCuNi or epoxy magnets with proper gauss control (<5000G surface field) won't scratch or demagnetize appliances. Silicone pads further protect surfaces.
Prototypes: 7-10 days. Production: 25-35 days for 10K units. Rush orders (15 days) available with 20% premium.
Absolutely. From curved wall-mounted racks to custom logo laser-etching in 20+ RAL colors. Provide CAD files for instant quotation.
EN 71-1, ASTM F963, RoHS, REACH, LFGB, SGS verified. Full test reports provided with every shipment.
